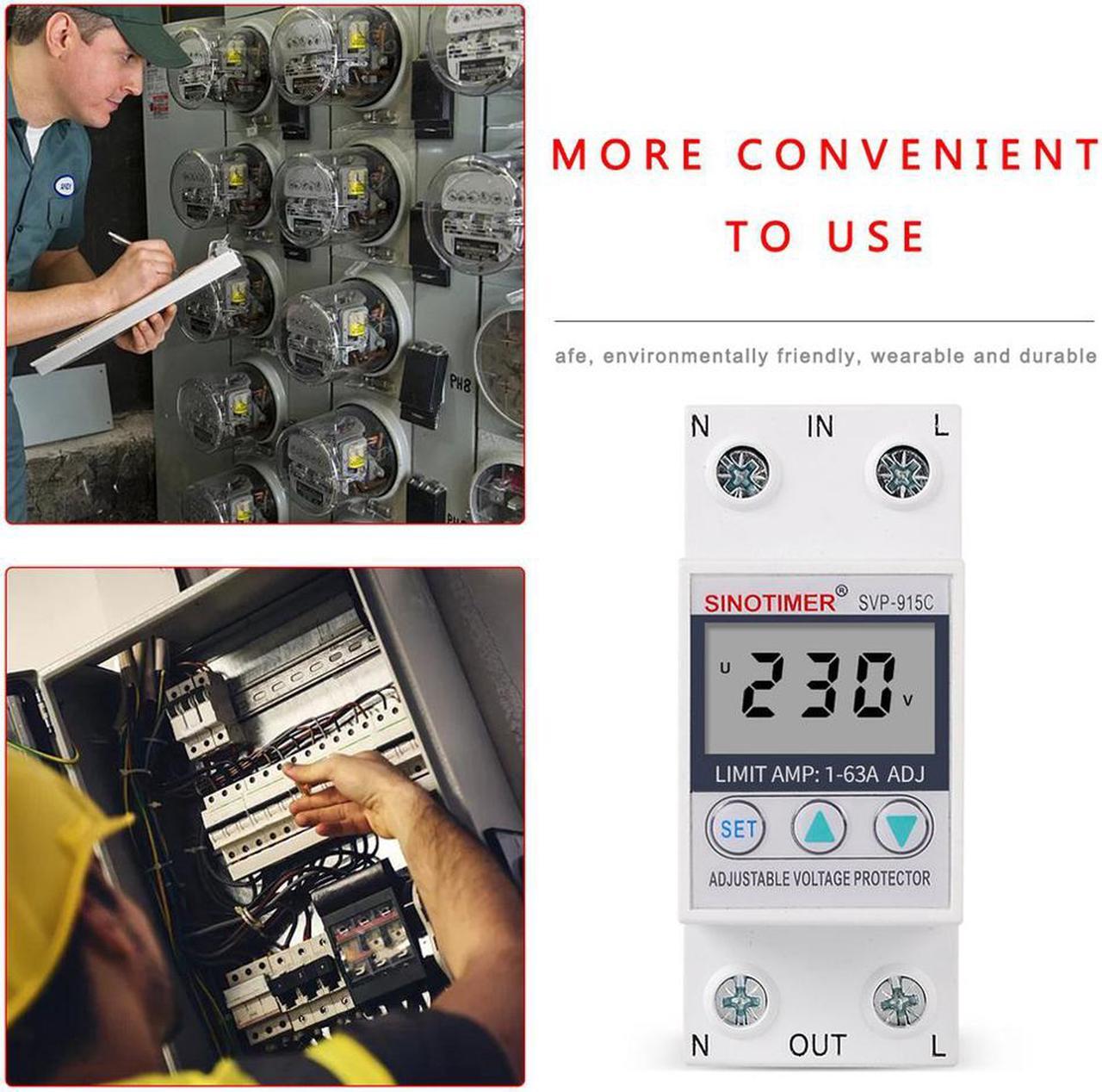

110V 63A Single Phase Two Wire LCD Digital Display Adjustable Voltage Surge Protectors Relay With Limit Current Protection

Description: Over voltage and under voltage monitors have multiple functions to protect electrical equipment from damage.
Specifications:
Brand: SINOTIMER
Model number: SVP-915CPower
supply: 230V / 110V, 50/60Hz Max.
Loading power: 40A / 50A / 63A / 80A (optional)
Overvoltage protection value range: 221V~290
(default: 275V)
Undervoltage protection value range: 219V~150V
(default: 170V)Overcurrent
protection value range: 1A~63A/80A
(default: 63A/80A)Power
consumption: <2W
Electric machinery life: 4, 000
timesDimensions:
65*35*85mmInstallation: 35mm
DIN railFunctions: Over-voltage
protection: 221V~300V
adjustable (default: 280V)Under-voltage
protection: 219V~150V
adjustable (default: 160V)Over
current protection: 1A~40A/50A63A/80A
adjustable (default: 40A/50A/63A/80A)Automatic
recovery: 2S~512S
adjustable (default:
60S)Volt-meter: (The first value displays Voltage)
Amp-meter: (The second value displays Current)
Features: 1. The automatic recovery overvoltage and undervoltage protection devices comply with modular design standards. 2. When the power supply is unstable, the protection function will be automatically activated. Once the voltage exceeds the limited range of the product, it will automatically cut off to protect the safety of electrical equipment and personnel. 3. When the power supply returns to normal, devices will power up again within one minute. 4. Fully automatic over-voltage and under-voltage protectors are suitable for users or loads with single-phase voltage of 230V/110V, 50/60Hz, and rated working current of 40A / 50A / 63A / 80A and below. 5. Over-voltage and under-voltage protectors has an intelligent LCD display and a large current-limit switch.
